Description
· Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)
· All Parts in Contact with Product are Food Grade (SS 304/316)

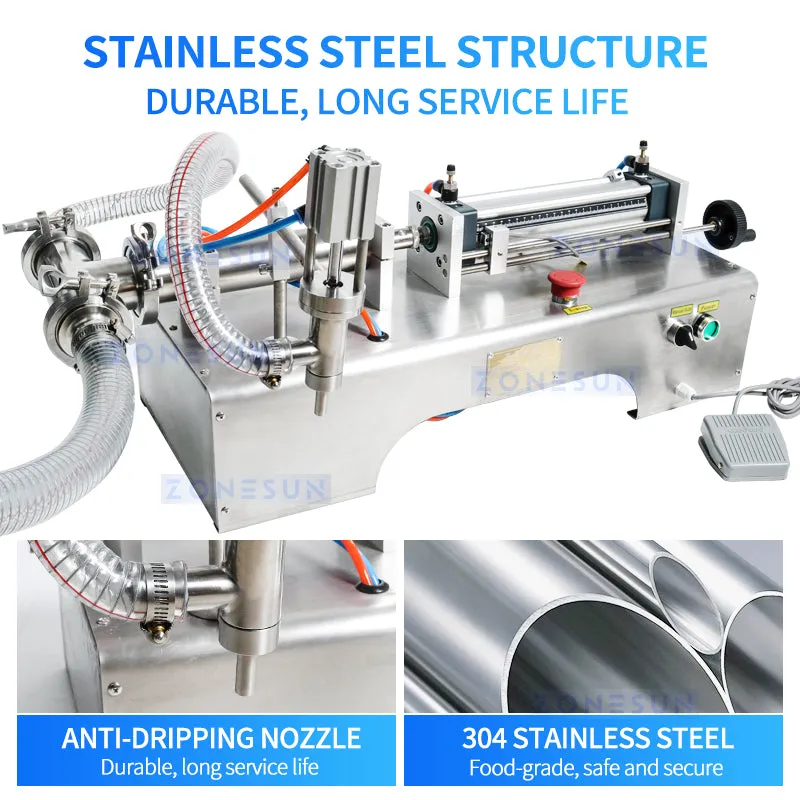

· Stainless Steel Construction
· Rugged Rotary Valve System Design
· Pneumatic Operation
· Silica gel O-ring System(cam bear 200 Celsius degree)
· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate ( /- 1%)
· Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.
Feature
(1) Only for liquid filling,not for paste filling;
(2) Adopts pneumatic working principle, simple operation, high filling precision;
(3) A certain concentration or certain size granular materials ideal filling equipment;
(4) Stainless Steel Construction;
(5) Rugged Rotary Valve System Design;
(6) Pneumatic Operation, the air compressor should be prepared by the buyer. The requirement of the air compressor:
Pressure: 0.4-0.6MPa;
Power: 750W;
Gas Capacity: >30L
(7) Piston Feed Speed Adjustment;
(8) No-drip Option Included and Installe;
(9) Extremely Easy to Clean and Maintain;
(10) Sanitary Stainless Steel Quick Disconnect Fittings;
(11) Extremely Easy to Operate;
(12) Quick Connect/ Disconnect Pneumatic Fittings;

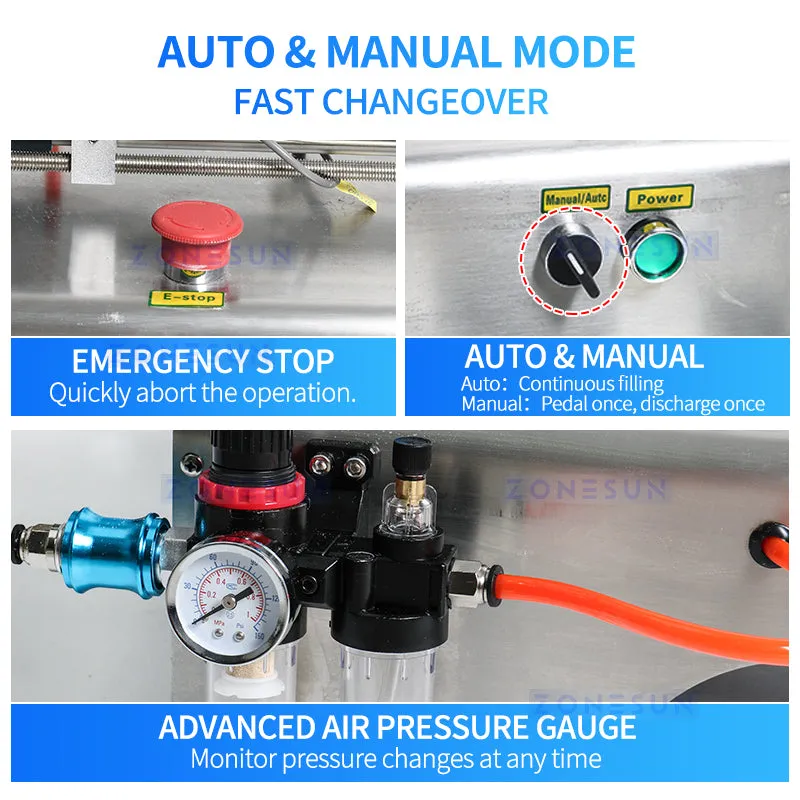

Control Panel
· Semi Auto/Continuous Operation Selector Switch
· Air Pressure Gauge
· Air Intake Pressure Adjustment
· Piston Volume Adjust
Accessory
Air Consumption 3-5KG 0.4-0.6MPa
Wearing parts : Silica gel O-ring System (when delivery, I will prepared enough for you use in one year. Customer can buy in the future in their country)
Warranty : one year
Model : G1WY-L-200
Voltage : 220V/50Hz or 110V/60Hz (Optional)
Pressure : 0.4-0.6mpa
Filling Speed : 5-30 bottles/min
Accuracy : >=±1%
Fillable Range : 10~200ml
Packing List
1.Discharge piton shaft seal ring : 2pcs
2.Anti-drip seal ring : 4pcs
3.Seal ring for discharge end : 2pcs
4.Piston seal ring : 2pcs
5.Seal ring for changeable nozzle : 2pcs
6.Seal ring for check valve : 1pcs
7.Yoke seal ring : 2pcs
8.Phillips screwdriver : 1pcs
9. Allen key (6,8) : 1pcs
10.Open end wrech : 1pcs
