- ▶ 【AC / DC dual mode】 - AC / DC dual input meet different use requirements. Output: AC /400W, DC /600Wx2.
- ▶ 【Safe Access】 - Fool-proof input interface. Smart design. The DC input port and the AC input connector are mutually exclusive. Only one input can be selected in one time. Ensure the safety operation.
- ▶ 【High Power Synchronous Dual Channel】 - with Smart Charging. Smart High Speed Processor delivers parameter interfere to each port. Hassle Free with Maximum charging power up to 600W for single port. Choose ISDT, Powered by Innovation.

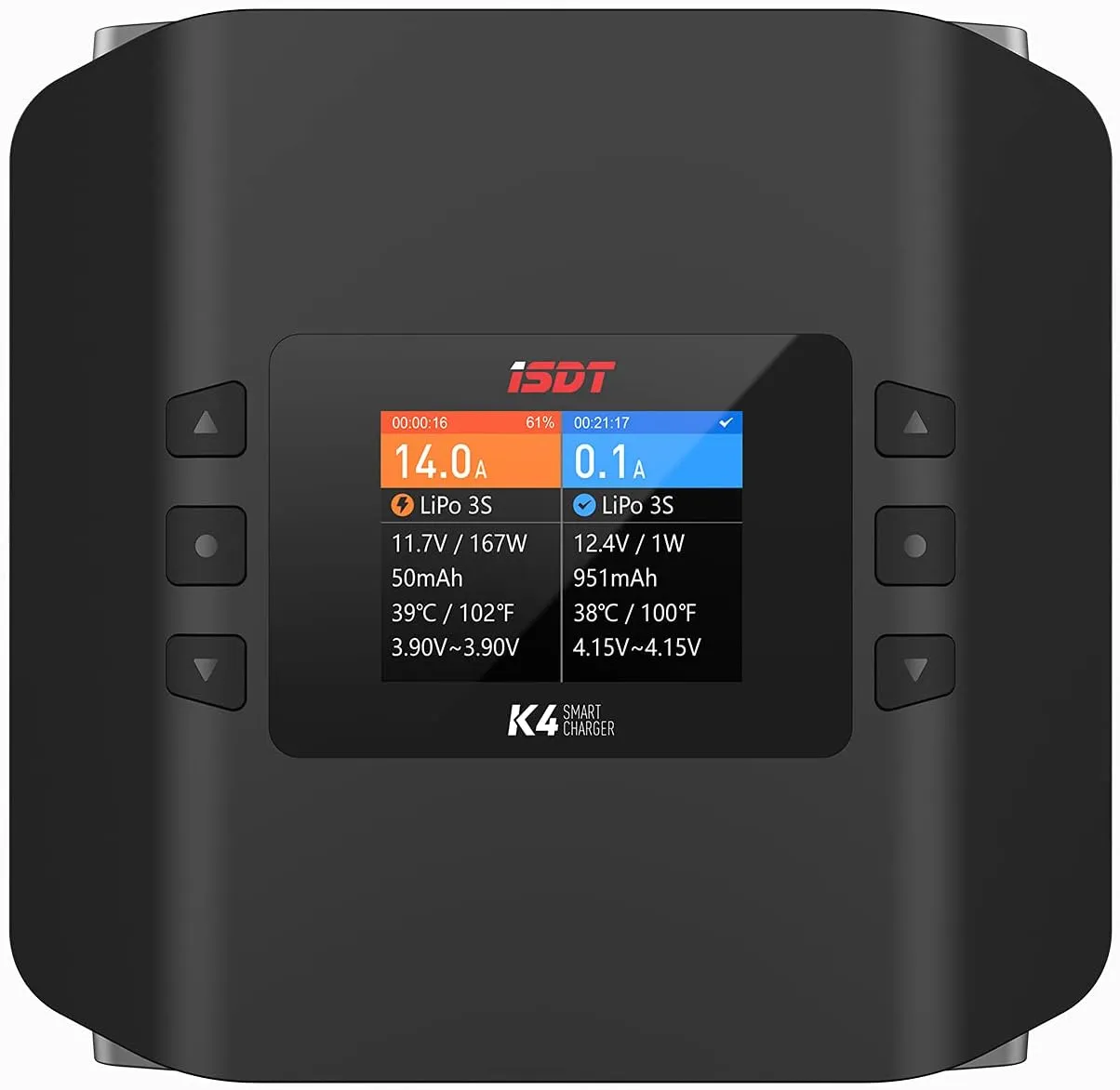

- ▶ 【2.8″ IPS LCD Display Low power consumption】 - 178° visible angle Display clear and distinct Even in varies hard environment or angles As well as in strong sunshine.
- ▶ 【Two-way USB interface】 - By connecting the charger microUSB port to the PC, all series can acquire latest firmware upgrading. It can also output 5V/2A power through the USB Type-C interface, For charging mobile devices.
Specifications:
Input voltage: AC 100~240V / DC 10~30V
Output voltage: DC 1~30V
Max. input current: DC 35A
Charging current: 0.2~20A x2
Discharging current: 0.2~3A x2
Balance current: 1.5A/Cell Max
Max. discharging power: 30W x2
Max. charging power: AC 400W / DC 600W x2
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell count: LiFe, Lilon, LiPo 1~8S, LiHv 1-8S, Pb 1-12S, NiMH/Cd 1-16S
Parallel charging power and current: 800W/35A
Parallel discharge power and current: 30W/3A
Working temperature: 0~40℃
Storage temperature: -20℃~60℃
Dimension: 142x135x64mm
Weight: About 700g
Packaging included:
1X ISDT K4 Charger
