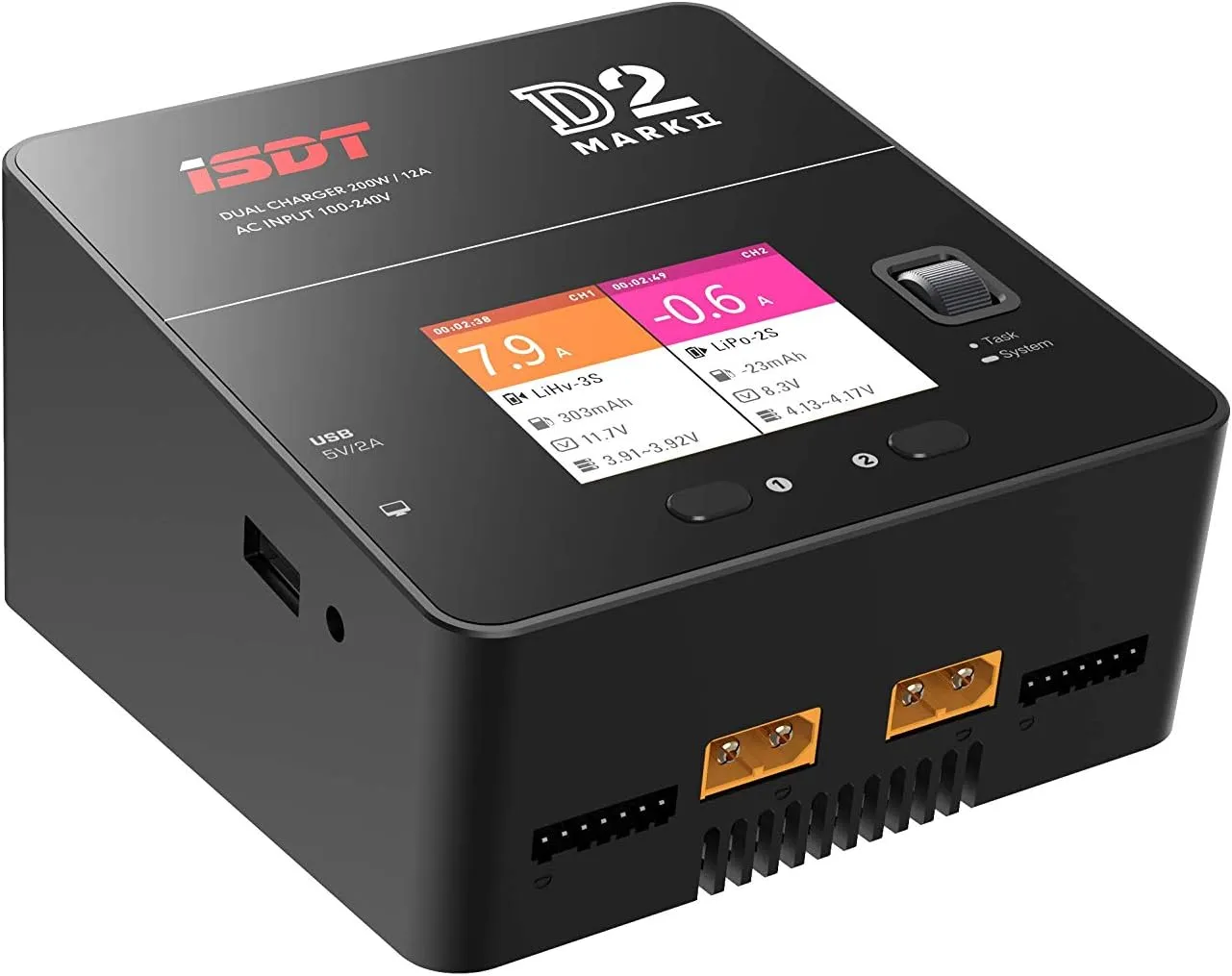

- 【Add more function】D2 mark 2 add the function of Parallel task, Dual task,DC power (CH1),theme,more language.
- 【Upgrade hardwre】D2 mark 2 has upgraded hardware, optimizing the system,also further improved the system stability.
- 【Dual channel output】 Without interference from each other Support up to 6S balance charging&discharging with 2 output port 5V/2A USB output power from side of the unit, easily charge your mobile phone or other electronic products.
- 【Feature】 Wide range AC Input, Industrial level power management Adaptive for all different voltages across the world; By using PFC circuit makes it works more stable and less interference to power grid. (SCP) Short current protection. (OLP) Over load protection. (OVP) Over voltage protection. (OTP) Over Temperature protection
- 【Supported Batt. Type】LiHv (1-6S) LiPo (1-6S) LiFe(1-6S) Lilon (1-6S) NiMH(1-16S) Cd(1-16S) Pb(1-12S)
Feature:
1.Wild rang AC Input,Industrial level power management.
DC power (CH1):The charger CH1 is equivalent to a DC power supply when selecting this function
2.200W of Dual Channel output,without interence from each other.
Dual task :Select this setting,the charger will charge/discharge/store to the two channel batteries with the same parameters at the same time.
Paralled task:Select this setting, it could output Max Power to one battery.
3.Unexceptionable performance on the power space retio.
4.Carefully optimized internal structure,dual fan cooling system.
5.scOs specially designed for smart charging OS.
6.Support Multiple Languages,totally localized.
Description:
Input Voltage: AC 100-240V
Charge Current: 0.1-12.0A*2
Discharge Current: 0.1-1.5A*2
Max Charge Capacity: 200W
Max Discharge Capacity: 15W*2
Balancing Current: 1.5A/cell*2
Balance Cells: 2-6S*2
Supported Batt. Type:
LiFe/Lilon/LiPo/LiHv (1-6S)
NiMH/Cd(1-16S)
Pb(1-12S)
Display: 2.4〃320×240 IPS LCD
Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Dimensions: 120x108x70 mm
Weight: 510g
Package Included:
1x ISDT D2 Mark 2 Charger
1x AC Input Cable
