- This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption.
- This radio system uses a high gain and high quality multi directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio transmission.
- FS-I6 rc transmitter suitable for racing drone, fixed-wing, quadcopter, multiple rotors
- Each transmitter has a unique ID, when binding with a receiver, the receiver saves that unique ID and can accepts only data from the unique transmitter. this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

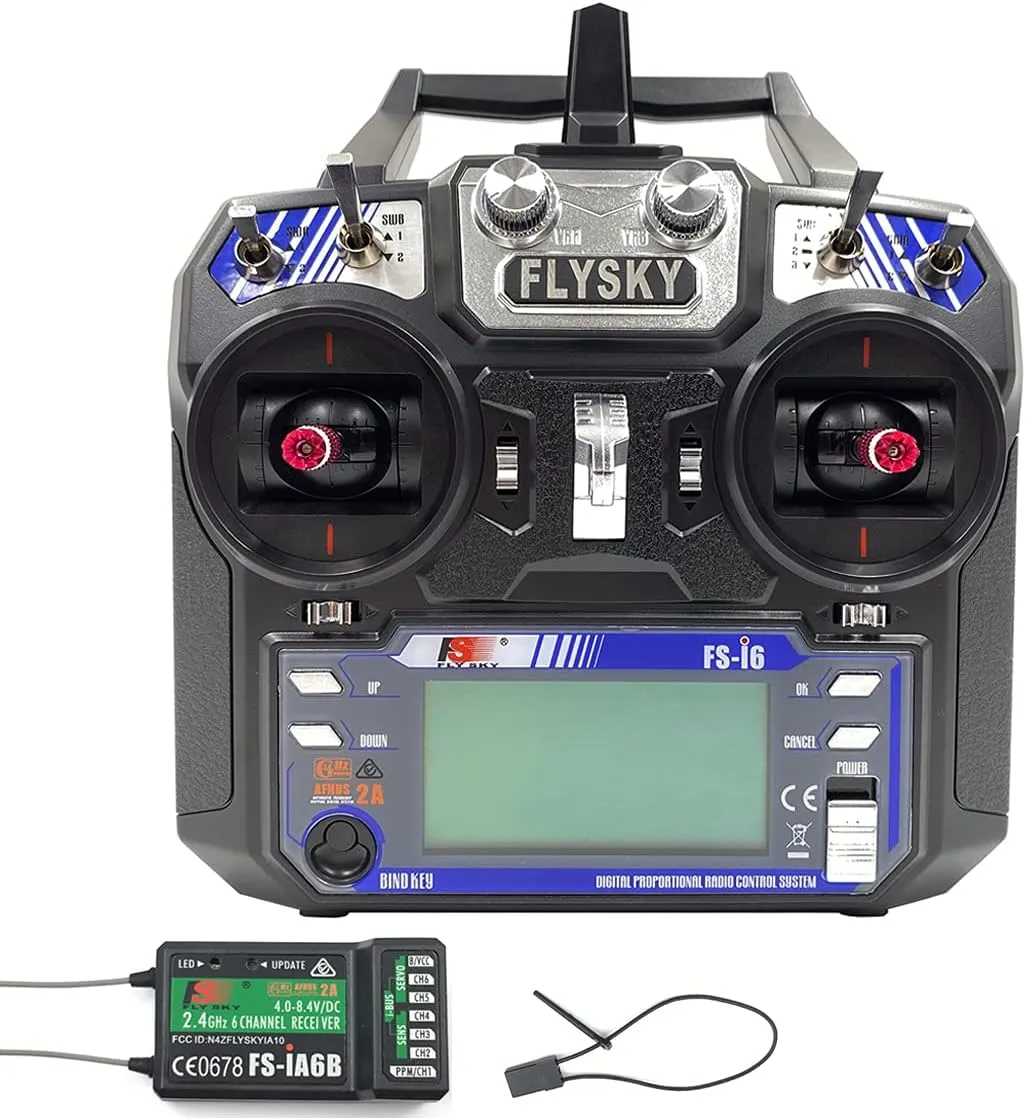

- FLYSKY FS-i6 6CH 2.4GHz AFHDS2A RC Transmitter w/ FS-iA6B Receiver
The FLYSKY transmitter and receiver have been pre-bound before delivery.If you are using another transmitter or receiver, follow the steps below to bind to the B/VCC port on the receiver.
1, Connect the supplied bind cable to the B/VCC port on the receiver.
2, Insert power into any other port.
3, Hold the "BIND KEY" while powering on the transmitter to enter bind mode.
4, Remove the power and bind cable from the receiver. Then connect the power cable to the B/VCC port.
5, Check the servos' operation. If anything does not work as expected, restart this procedure from the beginning.
FS-i6 Specifications:
Channels: 6 CH
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
brandwidth: 500KHz
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output:PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Transmitter Weight: 392g
Transmitter Size: 174x89x190mm
Package Size: 23.5x21.2x10.6cm
Package Weight: 676g
Power: 6V, 4*AA Battery(Not included)
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
On-line update:yes
Certificate: CE0678,FCC
Model Memories: 20
Control Range: 500m
FS-iA6B Specifications:
Channel: 6CH
Frequency Range: 2.4055--2.475GHZ
brand Width Number: 140
Transmitting Power: ≤ 20dBm
RF Receiver Sensitivity: -105dbm
2.4G system: AFHDS 2A
Code type: GFSK Antenna Length: 26mm * 2(dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47x26.2x15mm
Weight: 14.9g
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane/Glider/Helicopter
Compatible Transmitter: Compatible with FS-i6,FS-I6X,FS-I6S,FS-i4
Package Included:
1 x FS-i6 transmitter
1 x FS-iA6B Receiver
1 x Manual
