- ◆ Radiator Replacement For 1991-2001 Jeep Cherokee XJ 4.0L Comanche L4 L6 Off Road
- ◆ Improves cooling by 35% to 45% temperature
- ◆ Made of high quality full T-6061 aluminum construction
- ◆ Stronger and higher capacity for coolant than stock units
- ◆ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!

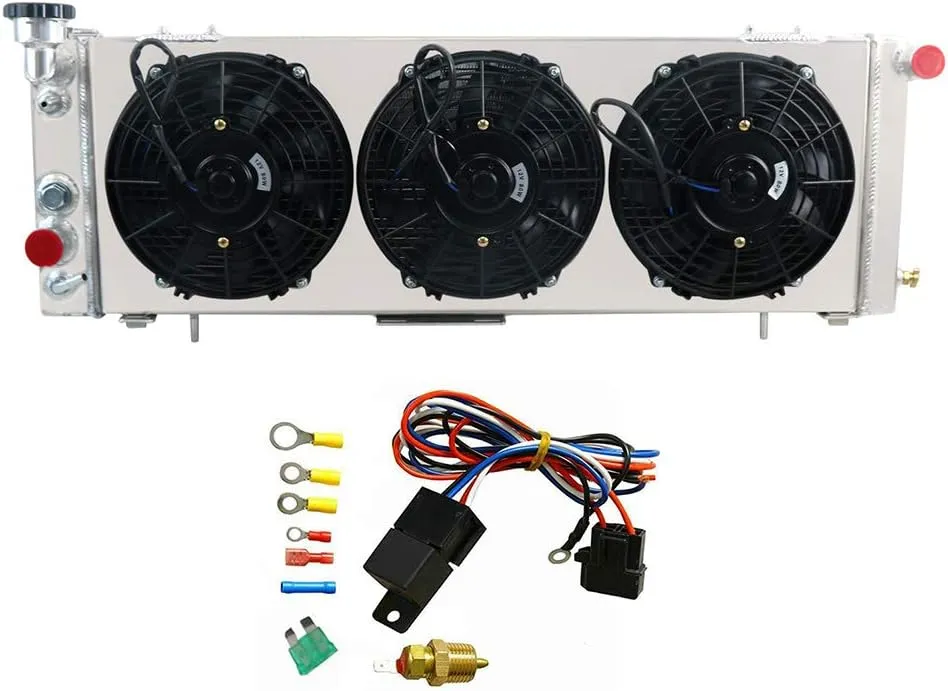

THIS LISTING INCLUDING ONE RADIATOR AND ONE SHROUD AND 3 X 9" FANS THERMOSTAT KITS!
Radiator Size:
Material: Full Aluminium
Radiator Cap: included
Core and Tank: All Aluminum
Core Height: 11.125
Core Width: 31
Overall Height: 13.5
Overall Width: 36
Inlet Diameter: 1.25
Outlet Diameter: 1.5
Upper Hose Fitting: PASSENGER
Lower Hose Fitting: DRIVER
Trans Cooler Details: 5/8-18 Straight Thread
Mounting Type: PIN MOUNT
Vehicle Fitment:
1991-2001 Jeep Cherokee l6
1995-2000 Jeep Cherokee SE Sport l4
1991-1992 Jeep Comanche 4.0L l6
For Jeep 91-01 Cherokee 2.5L 4.0L 91-92 Comanche 4.0L
For Jeep Cherokee XJ 6 Cylinder 1991-96 97-2001
For Jeep Cherokee Comanche l4 l6 2.5 4.0 6 Cylinder 1991-2001
(Fits Automatic and Manual Transmission Models with 2.5L 150Cu In. l4 or 4.0L 242Cu In. l6 OHV Engines ONLY)Please be Sure to Check Compatibility Chart
FANS SIZE:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 9.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
Please Notice:
To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table.
