Model

BMBK11T2-17

BMBK22T2-18

Technical Features

Category

IEC62196-2 Type 2

Power Capacity

11KW

22KW

Input max current

16A 3phases

32A 3phases

Voltage

380VAC±10%

380VAC±10%

Adjustment Current

8A-10A-13A-16A

8A-10A-13A-16A-32A

Rated Frequency

50/60HZ

RCD

Type A DC 6Ma (Optional)

Relative Humidty

0-95%

Connector Type

IEC62196-2 , 5meters/customize TPU (TUV Certificate)

Connector Mechanical Operating Life

>10000 times

User Interface & Control

Cummunication Interface

Bluetooth /WIFI /APP (Optional)

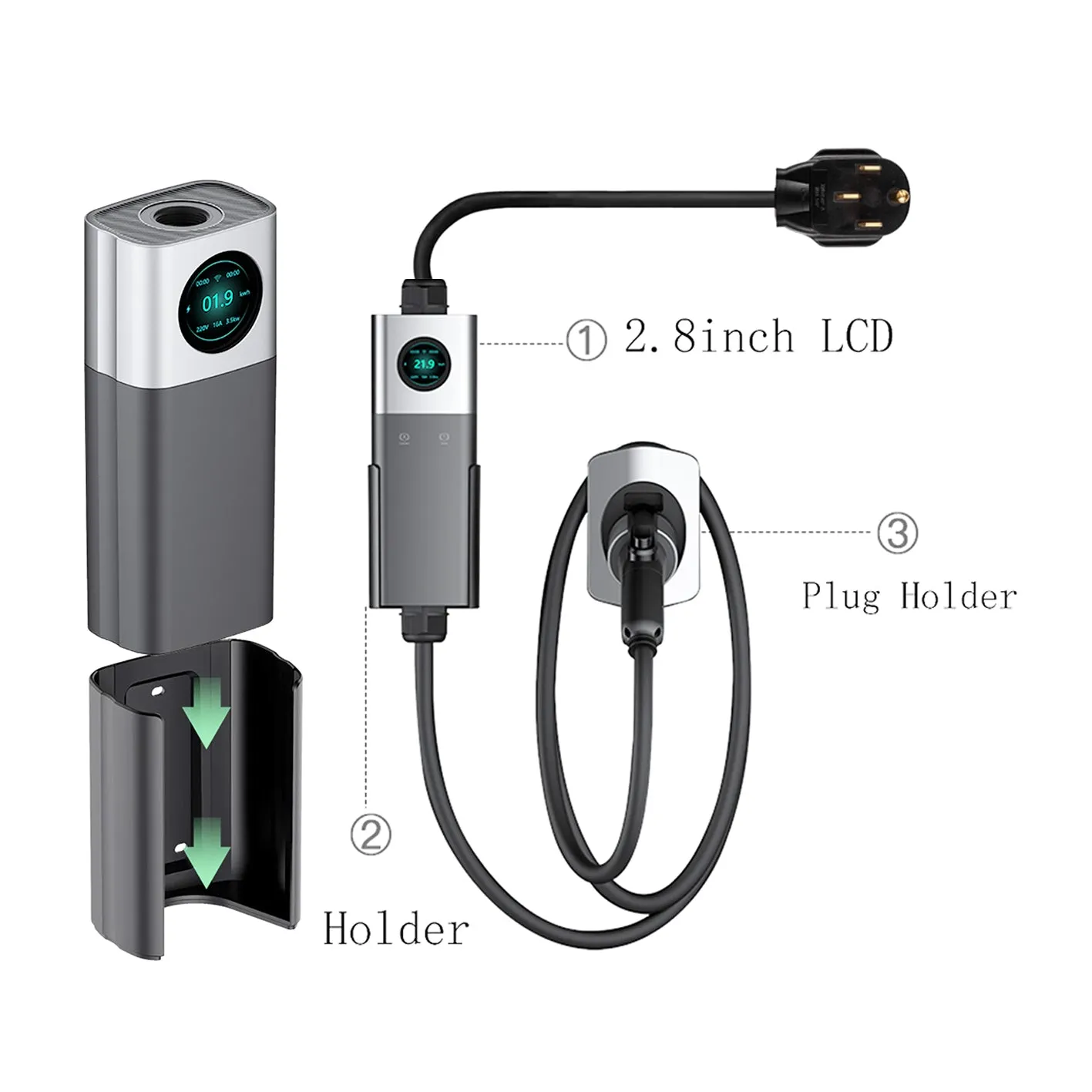

Display Screen

LCD 2.8inch /LED

Storage Temperature

-40 to 75℃ Ambient

Operating Temperature

-30 to 55℃ Ambient

Operating Humidity

Up to 95% Non-condensing

Altitude

≤2000m

Cooling Method

Natural Cooling

Protection Ratings

IP66

Protection

Short circuit, over voltage, over current, leakage over emperature, lighting protection, Ground insulation monitoring etc.

Certificate

CE ROHS UKCA CB
